Home / Products / VAN BEEST GREEN PIN BOW TYPE, SCREW PIN SHACKLE
VAN BEEST GREEN PIN BOW TYPE, SCREW PIN SHACKLE VAN BEEST GREEN PIN BOW TYPE, SCREW PIN SHACKLE VAN BEEST GREEN PIN BOW TYPE, SCREW PIN SHACKLE

Van Beest

VAN BEEST GREEN PIN BOW TYPE, SCREW PIN SHACKLE

SKU FHGPEC05 In stock
$15.00 ex GST

Prices exclude GST. Freight is confirmed at checkout or with your order acknowledgement.

Request a quote or technical advice

Product information

Description

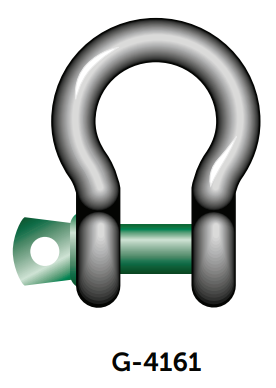

Standard bow shackle with screw collar pin
  • Material: bow and pin high tensile steel, grade 6, quenched and tempered
  • Safety Factor: MBL equals 6 x WLL
  • Standard: EN 13889 and meets performance requirements of US Fed. Spec. RR-C-271 Type IVA Class 2, grade A, from 2 t and upward these shackles comply with ASME B30.26
  • Finish: hot dipped galvanized
  • Temperature Range: -40°C up to +200°C
  • Certification: 2.1 2.2 3.1 MTC a DNV GL 0378 CE ABS PDA ABS MA

Technical details

Specifications
